Press Brake vs Panel Bender

I. Introduction

Metal forming involves shaping metal materials into desired geometrical shapes using various techniques. This process plays a critical role in manufacturing and construction. When it comes to high-quality metal fabrication, both the panel bender and press brake have a place.

Press brake is a widely used tool in metal forming processes of various metal sheets. It uses dies to bend sheet metals along specific lines. The operator can control the degree of bending, making it suitable for a range of projects that require varying bend angles.

The panel bender is known for its precise and efficient operation, particularly in high-volume settings. It employs advanced CNC technology to automate the bending process, ensuring accuracy and consistency, and is ideal for intricate bends and complex designs.

There are also several other presses available in the sheet metal bending industry, including stamping machines, folding machines, punching machines, etc. This comprehensive comparison will illuminate the key differences between press brake vs panel bender, exploring their working principles, efficiency, and the precision they offer, etc. Let's watch the video first:

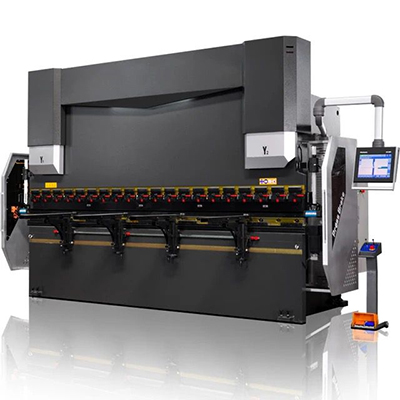

II. What Is a Press Brake?

1. Introduction

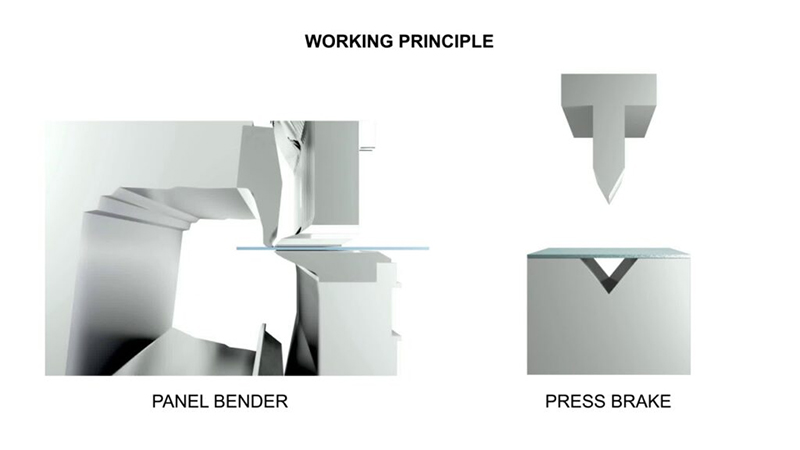

Press Brake: The upper and lower dies are used to bend the sheet. The upper die descends, exerting pressure on the sheet placed on the lower die, making it conform to the shape of the lower die and bend, just like using pliers to deform something.

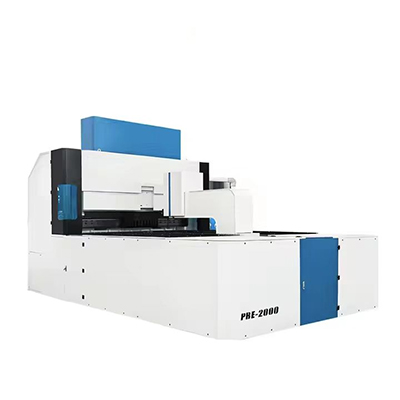

III. What Is a Panel Bender?

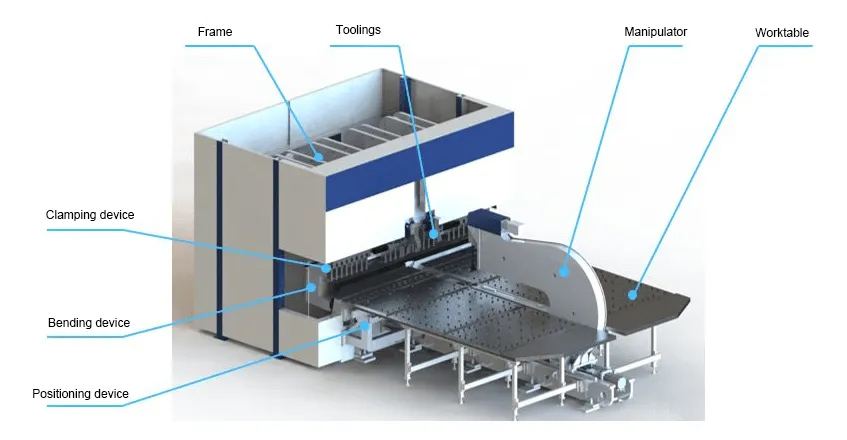

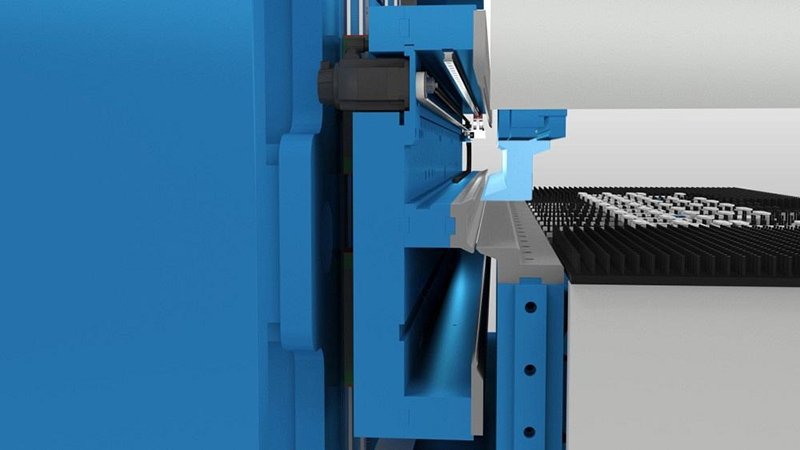

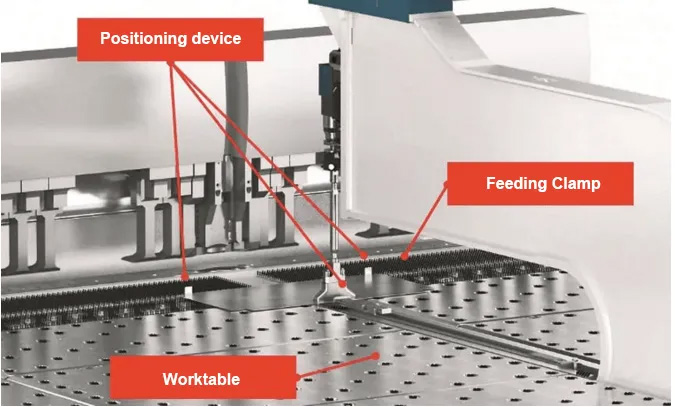

Panel Bender: Different mechanical structures are usually used. It may bend the sheet through rotation or special folding movements, and some use multiple mechanical arms or clamps to operate the sheet to achieve bending.

IV. Scope of application

Press Brake：

• It is suitable for plates of various thicknesses and materials. For thicker metal plates, such as steel plates with a thickness of more than several millimeters, it can complete the bending task well.

• It can produce bends of various angles, whether it is a simple right-angle bend or a complex multi-angle bend.

• It is also suitable for small batches of irregularly shaped bending parts.

V. Panel Bender：

It is particularly suitable for processing large, relatively thin panels. For example, in industries such as chassis manufacturing and electrical cabinet shell manufacturing, it has a good processing effect on thinner panels (usually less than 3mm).

• Better at making panels with continuous curved shapes, such as electrical panels with multiple parallel curved edges.

VI. Processing Accuracy

• Press Brake: The accuracy depends on the mold accuracy, the pressure control of the machine and the technical level of the operator. With skilled operation and high-quality molds, higher accuracy can be achieved, but complex shapes may require multiple debugging and processing.

• Panel Bender: Generally speaking, for panel processing of a specific shape, the accuracy is higher because the machine's movements are relatively more regular, and many panel bending machines use CNC systems to accurately control the bending angle and position.

VII. Processing Speed

• Press Brake: Processing speed varies depending on factors such as sheet thickness, bend complexity, etc. Thicker sheets or complex bend shapes will reduce processing speed because more pressure and possibly more operating steps are required.

• Panel Bender: It is relatively fast when processing thin panels and continuous curved shapes suitable for its process, because its working method is more suitable for this kind of efficient batch processing.

Panel Benders excel in high-volume, repeatable work, especially for parts that require multiple bends along their length. They're efficient for producing large quantities of parts quickly with consistent quality.

Choosing between the two largely depends on your production needs, part complexity, material type, and volume.
