WYQ24 Professional Profile Bending Machine

LANGYE Cost-effective Profile Bending Device
Expert Profile Bending Device
A guide roller comes after the primary bending roller in the WYQ24 series corner roller. The feed is supported and angle irons and other asymmetric shapes can be rolled with ease because to the guide's mechanical adjustment. WYQ24 will guarantee your standing as a multifaceted bending specialist for important players in the future. Utilize our customized Bluetooth bending controller to control your equipment.

Details of W24S Professional Profile Bendi

high standard professional profile bending machines

High Standard Professional Profile Bending Machines

The largest capacity profile bending machines in the world are supported by angle rollers! They can cut cycle times by using planetary rotating bottom rollers to make tighter, faster bends with fewer passes.

Both CNC and NC models of the angle bending machines are offered, and they come with LANGYE's unique auto-learning software, which does away with the need for sacrificial test bends and saves scrap and production time.

The W24S beam rolling mill from LANGYE is the ideal option if the largest profiles need to be bent.

Angle Steel Coil Standard Specifications

  • Three drive rollers and a bottom roller hydraulic adjustment

  • Typical roll and electronic overload safeguards

  • Side guide rollers and both horizontal and vertical operating positions (MAH60/3AC – MAH120/3AC

  • Foot pedal with standard hydraulic guiding rollers and safety device (MAH150/3AC)

  • The bottom reel features hydraulic angle guide rollers and a configurable digital readout (MAH150/3AC).

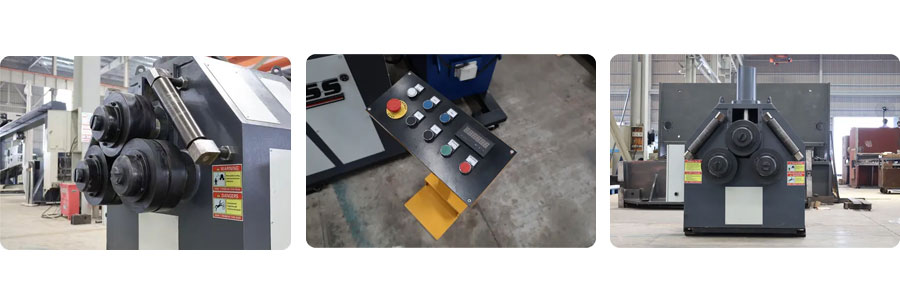

More Details

more details


Technical Paraments

Model616304575100140180260320400500
Max. bending resistant modulus6CM316CM330CM345CM375CM3100CM3140CM3180CM3260CM3320CM3400CM3500CM3
Yield limit245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa245Mpa
Down roller speed180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min180mm/min
Top axis diameter70mm150mm160mm160mm180mm200mm210mm220mm240mm240mm280mm280mm
Bottom axis diameter70mm145mm155mm160mm170mm190mm200mm220mm220mm220mm260mm280mm
Mould diameter145mm350mm350mm380mm420mm460mm520mm540mm560mm650mm670mm900mm
Bending speed5m/min5m/min5m/min5m/min5m/min4.5m/min4.5m/min4.5m/min4m/min4m/min4m/min4m/min
Hydraulic pressure19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa19.5Mpa
Motor power5.5KW7.5KW7.5KW11KW15KW18.5KW22KW22KW30KW37KW37KW55KW
