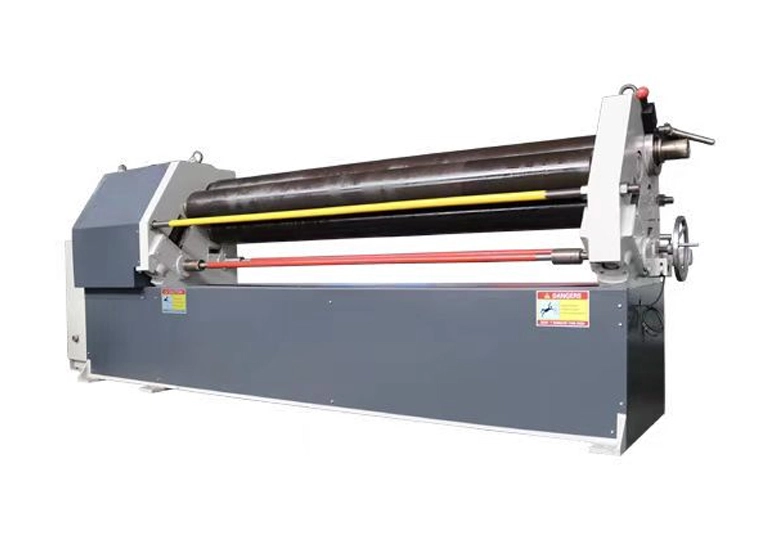

W11F Asymmetric 3-Rollers Plate

One of the greatest options for thin plates is the LANGYE inexpensive plate bending machine, which has a pre-bending function of up to 6 mm and a minimum of 2 mm. Its length ranges from 1000 to 2000 mm.

Details of W11F Asymmetric 3-Rollers Plate

high standard asymmetric plate bending machine

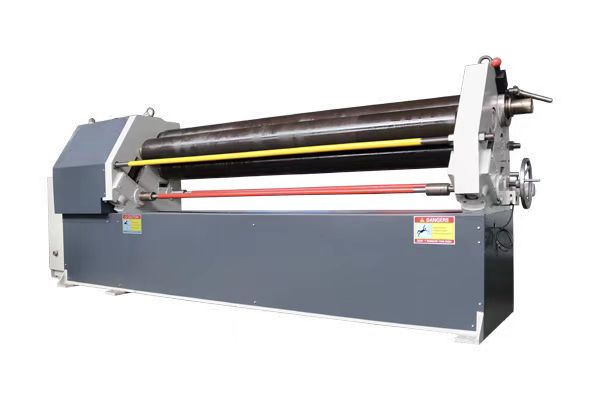

High Standard Asymmetric Plate Bending Machine

The W11F series three-roll plate rolling machine has large steel rollers and a strong electric welded construction. The equipment's performance is on par with more costly four-roll plate rolling machines since the side rollers travel on linear guides to bend the material close to the tight spots. Additionally, this series of three-roll plate rolling machines guarantees maximum traction through the bending roller operation. It can successfully stop thin plates and asymmetric geometries from slipping during pre-bending.


Standard Equipment/Optional Features

  • Two motorized reels and a digital roll position readout

  • Conical device or rolls that are induction-hardened

  • Profile bending ring/roller surface polishing

  • CNC bending and electric pre-bending

  • Version of the bending roll tilting/vertical reel

  • Extension-equipped roller for corrugated rolls and bending profiles

  • Control of a mobile pedal

  • The machine's emergency barrier

  • CE-certified device

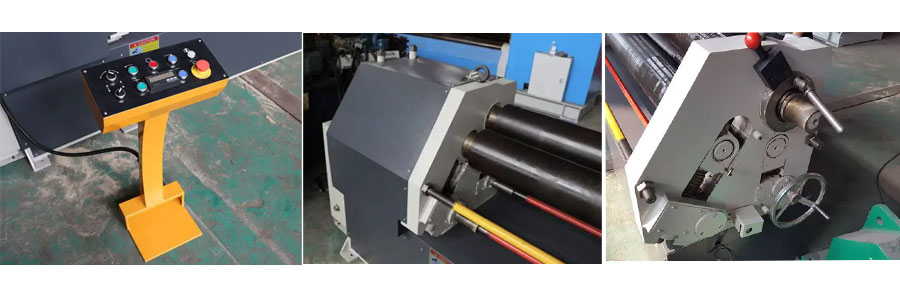

More Details about Sheet Metal Bending Machines

more details about sheet metal bending machines

Technical Paraments

ModelMax. Thickness of Plate (mm)Pre-bending Thickness (mm)Max. Width of Plate (mm)Plate Yeild Limit (Mpa)Top Roller Dia. (mm)Bottom Roller Dia. (mm)Side Roller Dia. (mm)Main Motor (Kw)Weight (T)
W11F-2x10002210002451101101102.21000
W11F-2x15002215002451201201202.21200
W11F-2x20002220002451301301302.21450
W11F-3x10003310002451201201202.21050
W11F-3x15003315002451301301302.21150
W11F-4x10004410002451301301302.21300
W11F-4x150044150024513513513531600
W11F-4x200044200024515015015042000
W11F-6x100066100024514014014031500
W11F-6x150066150024515015015042200
W11F-6x20006620002451701701705.52600
