W11 3-Roll Plate Roller Machine

The primary purpose of the LANGYE cost-effective mechanical two-roller plate rolling machine is to roll plates that range in diameter from 4 to 40 mm and in length from 1500 to 4000 mm. It is the ideal option for clients with lower processing volumes because it is a very inexpensive and reasonably priced plate rolling machine.

Details of W11 3-Roll Plate Roller Machine

high standard three roller metal plate bending machine

High Standard Three-roller Metal Plate Bending Machine

Pyramid-shaped linear guide bending rollers are used by the strong W11 series metal plate bending machine to provide the best bending effect without sacrificing power. The torque and speed benefits of the three-roller bending machine are ensured by the separate hydraulic gear motors that connect the three rollers of the W11 plate bending machine directly to the bending roller shaft.


Standard Equipment/Optional Features


  • Two profile bending rings and motorized reels

  • CNC and induction-hardened rolls

  • Version of the vertical reel and roller surface polishing

  • Electric side and central supports, pre-bending, and bending

  • Tilting bending rolls and preparing the machine for hot rolling

  • For bending profiles or versions with planetary guides, a roller with extension (3HEP)

  • Special colors and mobile pedal control

  • The machine's emergency barrier

  • CE-certified device

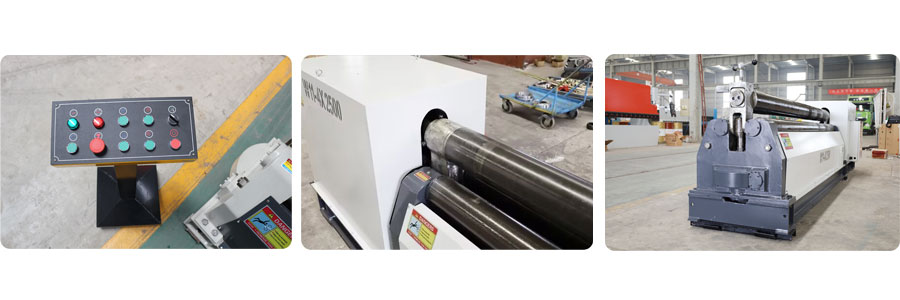

More Details about Three-roll Plate Bending Machine

more details about three roll plate bending machine

Technical Paraments

NameMax Rolling ThicknessMax Rolling Width (mm)Min Rolling Diameter (N/mm)Yield Limit (N/mm2)Rolling Speed (m/min)Upper Roller Diameter (mm)Lower Roller Diameter (mm)Lower Roller Center Distance (mm)Main Motor Power (Kw)Weight (Kg)
<450N/mm2<700N/mm2
W11-4/150042.51500187.5245515014020041700
W11-4/200042.52000200245516015022042000
W11-6/1500641500200245516015022042200
W11-6/2000642000212.524551701602205.52500
W11-6/25006425002252454.51801702505.52600
W11-8/1500851500212.524551701602205.52400
W11-8/20008520002252454.51801702505.52500
W11-8/25008525003002454.52401802807.54000
W11-12/200012820003002454.52401802807.53500
W11-12/250012825003252454.5260220320115300
W11-12/300012830003502454280240360117500
W11-16/20001610.520003252454.5260220320114800
W11-16/25001610.525003502454280240360116700
W11-16/30001610.5300042524543402704401510300
W11-20/2000201320003502454280240360116500
W11-20/2500201325004252454340270440159300
W11-25/20002516.520004252454340270440158600
W11-25/25002516.52500462.524543702804802211000
W11-30/200030202000462.524543702804802210000
W11-30/25003020250052524544203605503016000
W11-30/300030203000187.524541503906003018500
W11-40/25004026.5250062524545004006003720000
