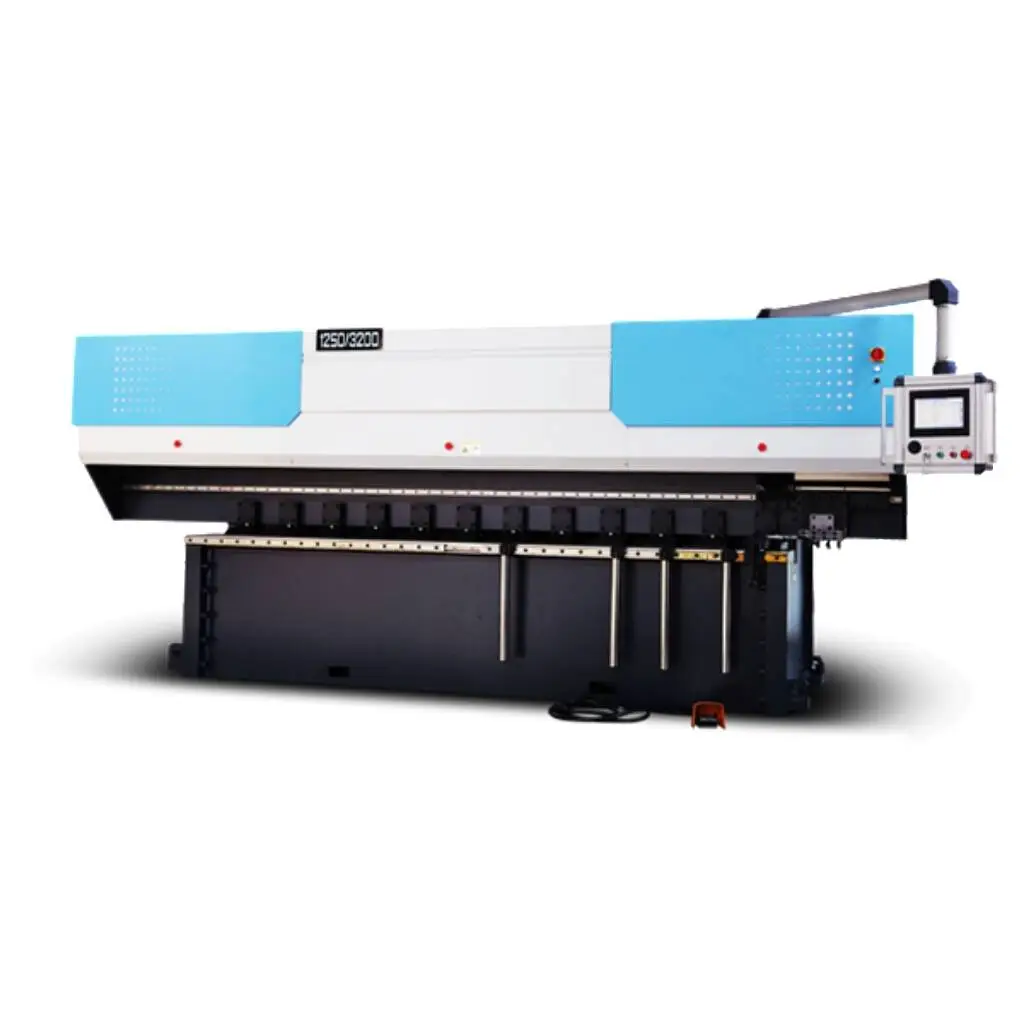

Vertical V Grooving Machine

It is constructed from dependable and high-quality parts and is tailored for every V-grooving machine size. The horizontal V-grooving machine is the best in its class and comes in a variety of types and powers with adjustable lengths and shear thicknesses.

Standard equipment

• Taiwanese CNC Controller: Huazhong University of Science and Technology


• Servo Motor: Japan's Panasonic


• Taiwan-based HINWIN manufactures high precision ball screws.


• Taiwan's HINWIN High Precision Linear Guide


• Pinion drive and rack: YYC, Taiwan


• Japan's NSK Contact Ball Bearing


• Slotting cutter: Korean manufacturer KORLOY


• Electrical Parts: Taiwan-based AT&T


• Pneumatic Cylinder: Taiwan's AT&T


• Power Cord: Germany's IGUS







Configuration

• Stable, accurate and quiet

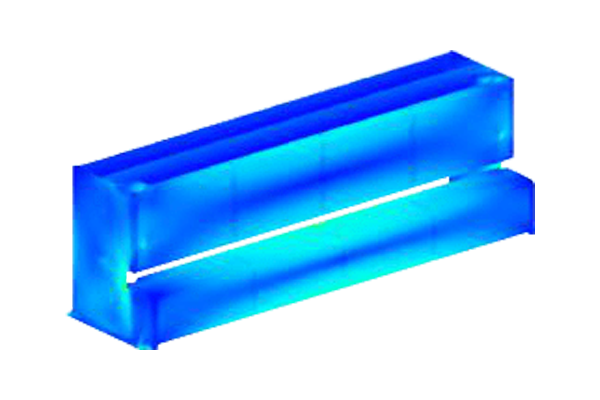

  The machine tool's overall rigidity is robust, sturdy, and long-lasting because the bed and crossbeam are constructed with frame structure, the table is made of 60mm low alloy high-strength structural steel, and the frame is made of Q345 steel plate.

• Huazhong University of Science and Technology CNC system

  CNC system A60C control at Huazhong University of Science and Technology

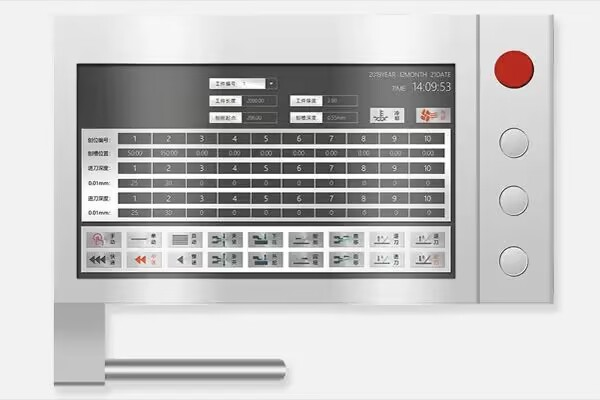

  CNC touch screen display, 15-inch
  Response time for acceleration and deceleration: 0.5US
  Using a fallback feature
  PLC interrupt function: the duration of scanning is
  Set at 10 ms
  Avoiding collisions




• Alloy blade

  Each blade can groove uniformly during machining thanks to the use of four grooving knives.
  Steel alloy is used to make the blades.
  uses double-nozzle blowing to get rid of particles more completely.

Horizontal V-channel machine technical parameters

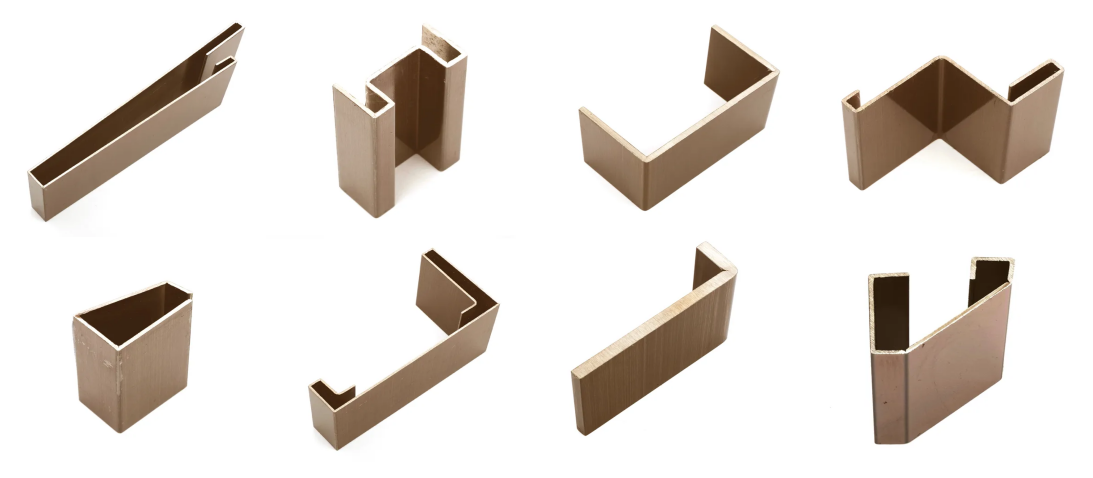

Slotting Case of Sheet Metal V Groover
