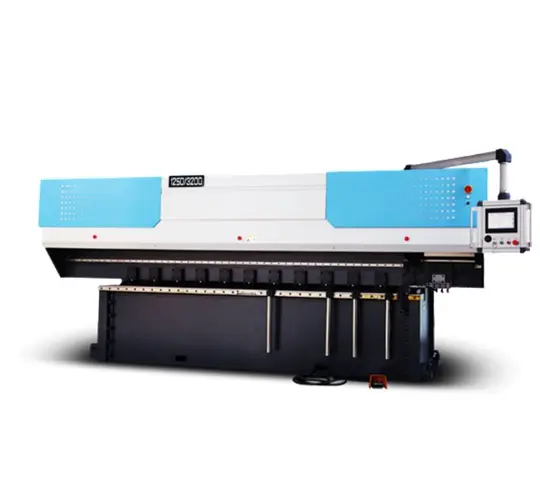

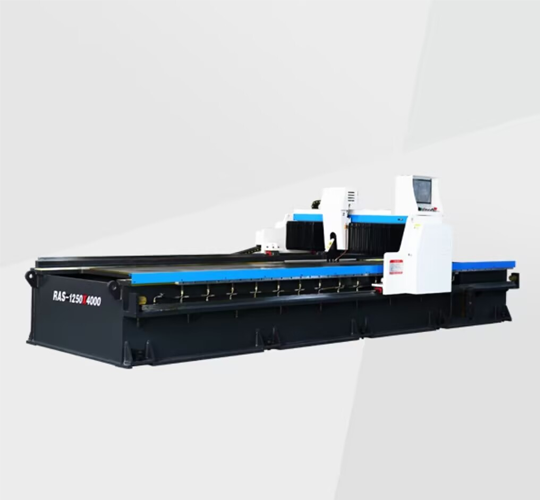

Horizontal V Grooving Machine

It is constructed from dependable and high-quality parts and is tailored for every V-grooving machine size. The horizontal V-grooving machine is the best in its class and comes in a variety of types and powers with adjustable lengths and shear thicknesses.

Standard Equipment

•


  Taiwanese CNC Controller: Huazhong University of Science and Technology


• Servo Motor: Japan's Panasonic


• Taiwan-based HINWIN manufactures high precision ball screws.

• Taiwan's HINWIN High Precision Linear Guide

• Pinion drive and rack: YYC, Taiwan

• Japan's NSK Contact Ball Bearing

• Slotting cutter: Korean manufacturer KORLOY

• Electrical Parts: Taiwan-based AT&T

• Pneumatic Cylinder: Taiwan's AT&T

• Power Cord: Germany's IGUS







Configuration

• Stable, accurate and quiet

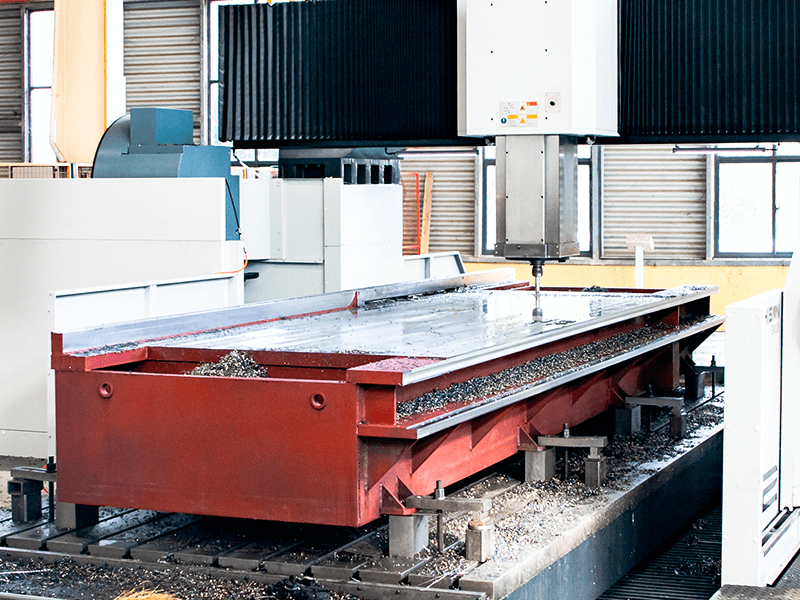

  The machine tool's overall rigidity is robust, sturdy, and long-lasting because the bed and crossbeam are constructed with frame structure, the table is made of 60mm low alloy high-strength structural steel, and the frame is made of Q345 steel plate.

• Huazhong University of Science and Technology CNC system

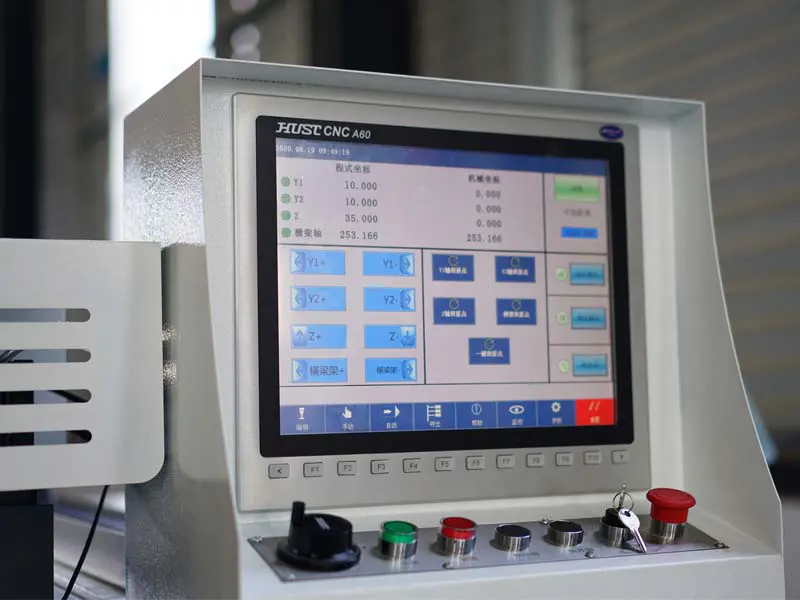

  CNC system A60C control at Huazhong University of Science and Technology
  CNC touch screen display, 15-inch
  Response time for acceleration and deceleration: 0.5US
  Using a fallback feature
  PLC interrupt function: the duration of scanning is
  Set at 10 ms
  Avoiding collisions

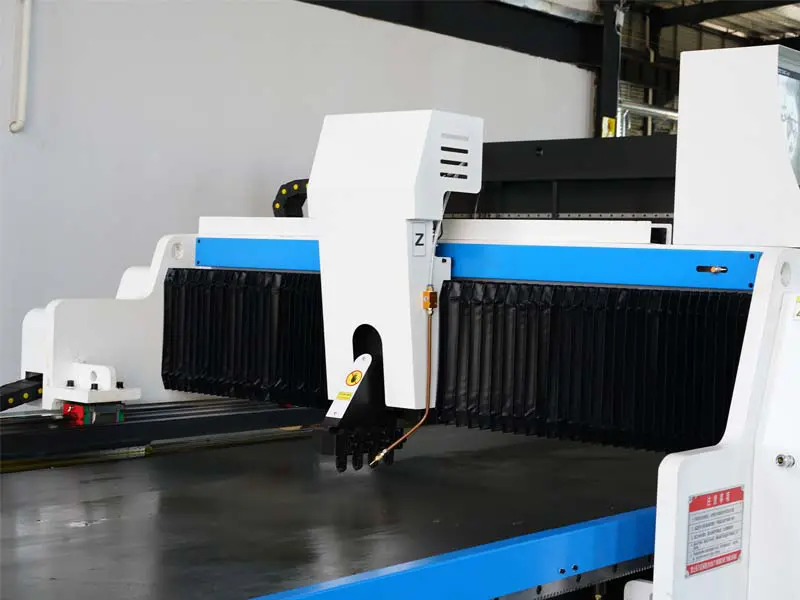

• Alloy blade




• Each blade can groove uniformly during machining thanks to the use of four grooving knives.




• Steel alloy is used to make the blades.




• uses double-nozzle blowing to get rid of particles more completely.

Horizontal V-channel Machine Technical Parameters

Slotting Case of Sheet Metal V Groover
