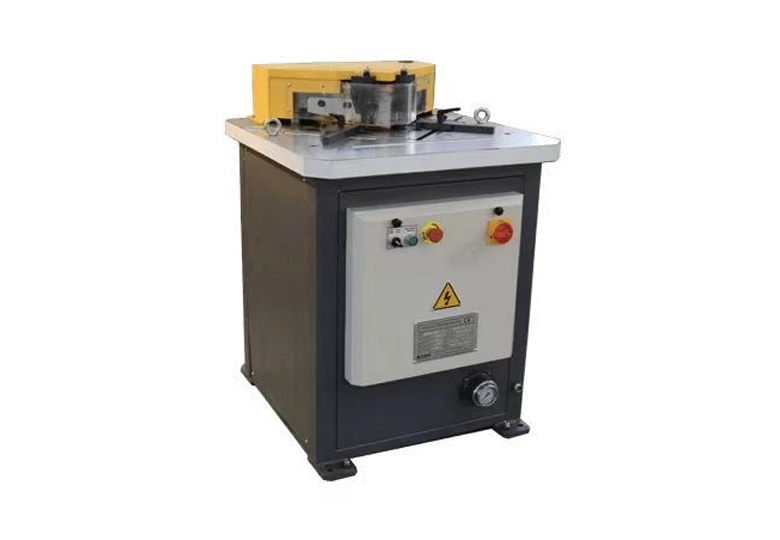

Details of Fixed Angle Notching Machine

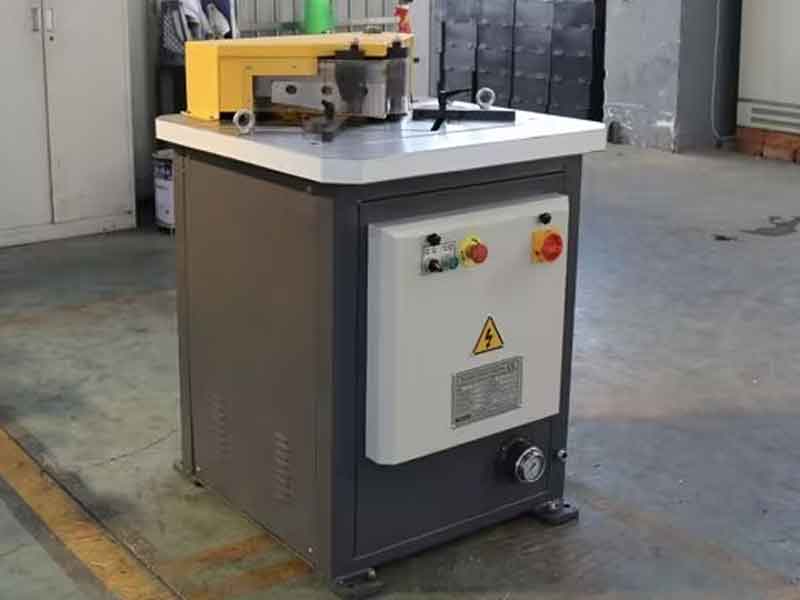

High Standard Fixed Angle Notching Machine
Both fixed and angle adjustment are features of our hydraulic fixed angle notching machine. It features a steel worktable and a sturdy, long-lasting body. This machine can quickly and precisely alter the necessary cutting angle between 30 and 140 degrees with the use of the functions mounted on the worktable. T-slots are machined into the top surface of this machine, allowing precise adjustment of the cutting angle and depth. High cutting quality and accuracy are provided by the automatic cutting gap adjustment, which may be modified based on the material's kind and thickness.

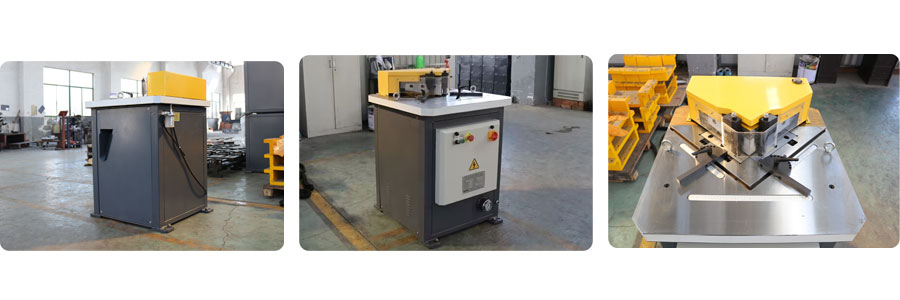

General Features
The largest cut size is 250 x 250 mm.
Sturdy frame, strong steel table, and top beam material are features of the QF28Y variable tilt hydraulic angle slotting machine.
The hydraulic slotting machine is tiny, lightweight, and simple to use.
The QF28Y hydraulic slotting machine has a 6 mm cutting capacity.
The slotting speed is quick, and the slotting angle is fixed at 90°.
Precise cutting is made possible by the T-slot top table, which also eliminates the need to align various plate thicknesses by automatically changing the blade gap.
The QF28Y series repeatedly cuts through four hydraulic clamping cylinders.
An automatic feeding system is an optional piece of equipment.
Technical Paraments
| Model | Max.Plate Thickness (mm) | Max.Plate Length (mm) | Cutting Angle Range (°) | Travel Times (N/min) | Worktable Height (mm) | Motor Power (KW) | Outline Dimensions (mm) | Weight(kg) |
| CS | SS | L | W | H |
| 4X250 | 0.5-4 | 0.5-2 | 250 | 90 | 35 | 850 | 4 | 910 | 760 | 1050 | 680 |
| 6X250 | 0.5-6 | 0.5-3 | 250 | 90 | 35 | 850 | 4 | 910 | 810 | 1050 | 710 |
