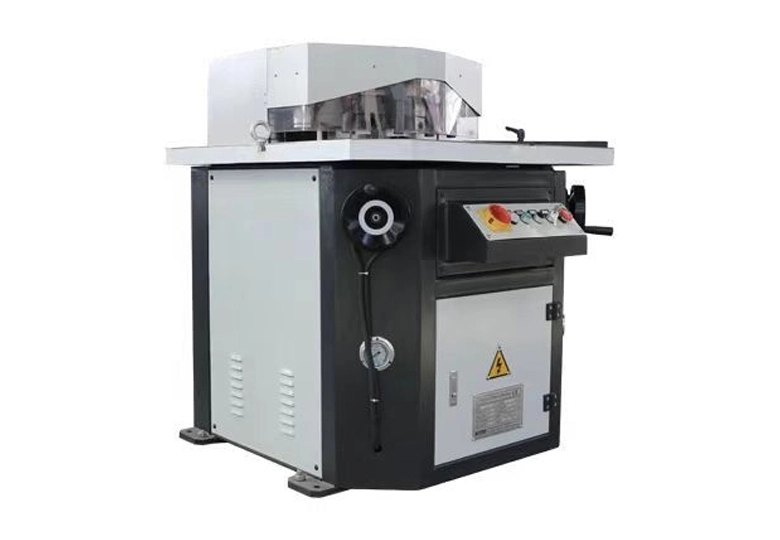

Angle Adjustable Notching Machi

Adjustable Grooving Machine by Angle
LANGYE angle groovers with angle adjustment are composed of premium parts and have a strong frame structure. The operator may work efficiently by using both hands thanks to the handy foot switch. The LANGYE line of angle groovers is appropriate for all types of groove work and consistently produces accurate and effective results. LANGYE is the best option if your company need a precise and effective equipment. LANGYE is a robust, quick, and long-lasting machine.


Details of Angle Adjustable Notching Machi

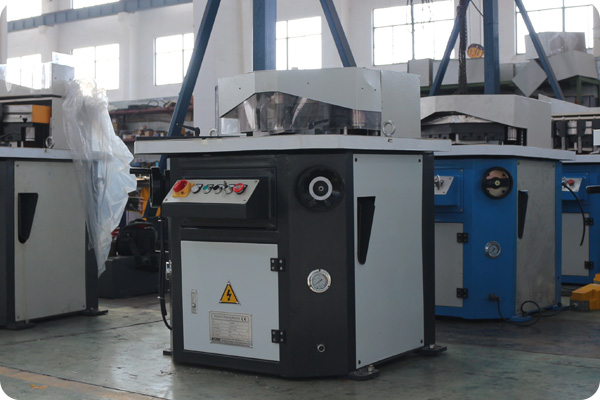

high standard angle adjustable slotting machine


High Standard Angle Adjustable Slotting Machine

We offer a fixed and angle-adjustable hydraulic angle-adjustable slotting machine. It features a steel worktable and a sturdy, long-lasting body. This machine can quickly and precisely alter the necessary cutting angle between 30 and 140 degrees with the use of the functions mounted on the worktable. The angle and depth of the cutting angle can be precisely adjusted thanks to T-slots machined into the top surface of the angle adjustable slotting machine. High cutting quality and accuracy are provided by the automatic cutting gap adjustment, which may be modified based on the material's kind and thickness.


Features/Capacity


  • Two hand wheels make it simple to adjust the cutting length and angle up to 200 mm.

  • With a density of 42 kg/mm2, a protractor can be used to precisely control the cut angle and thickness up to 6 mm.

  • Cutting thickness up to 3 mm at a density of 70 kg/mm2 using a square guide, scale, and angle gauge

  • For all sheet thicknesses, the blade gap is automatically adjusted. The cutting angle is 5°.

  • outfitted with side, back, and front protections for the operator's maximum safety.3-mm cutting angle: 30-140°

  • Protections on the front, back, and sides for the trash collecting system operator's maximum safetyThere are fifty cuts every minute.

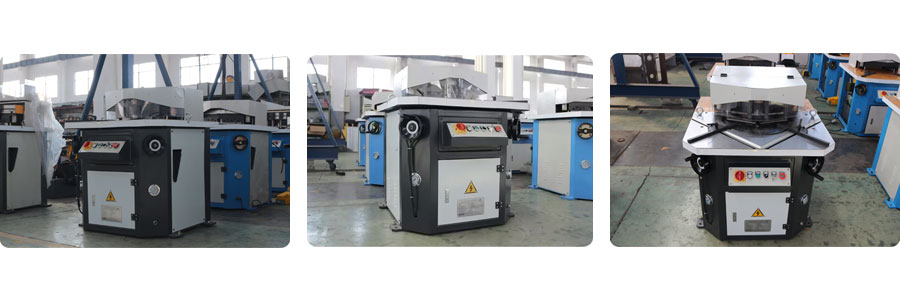

    features

Technical Paraments

ModelMax.Plate Thickness (mm)Max.Plate Length (mm)Cutting Angle Range (°)Travel Times (N/min)Worktable Height (mm)Motor Power (KW)Outline Dimensions (mm)Weithe (kg)
CSSSLWH
4X2200.5-40.5-222040°-135°3585049107601050860
6X2200.5-60.5-322040°-135°3585049108101050970


Products

Need a quotation? Want to know more about our sheet metal manufacturing products? Fill out the form

below and our team will get back to you within 24 hours.

What you'll get：

  • Receive custom equipment solutions and pricing.

  • A professional consultant will reply within one working day.

  • Get a free equipment selection guide and success stories.

  • Inquiring customers enjoy equipment discounts.

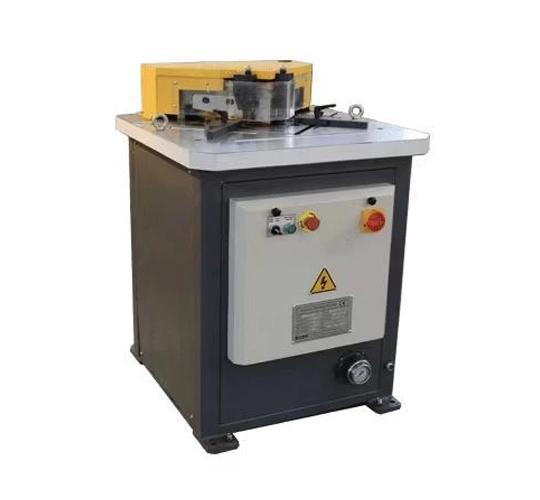

Related Notching Machine
