Applications of Press Brakes in CNC Control Systems

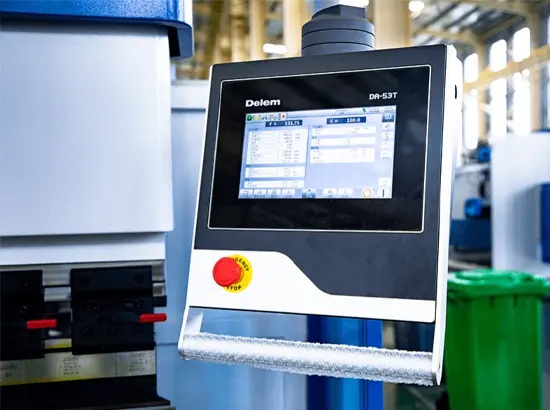

The DA-53T Touch CNC controller provides a modern, compact and flexible solution for a wide range of bending machine applications without sacrificing machine functionality.

10.1-inch high-resolution color TFT

“Hot key” touch navigation

Up to 4 axes (Y1, Y2 + 2 auxiliary axes)

Tools / Materials / Product Library

Advanced Y-axis control algorithms for closed and open loop valves.

CNC camber control

USB memory stick interface

Profile-53TL Offline Software

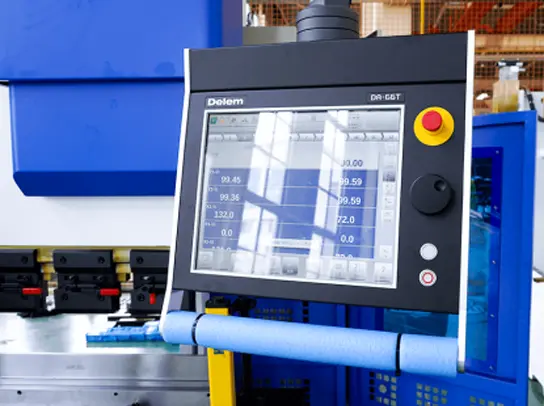

The DA-66T touch controller is equipped with an embedded real-time Windows operating system to ensure maximum reliability.  Smooth startup is guaranteed even after momentary shutdown.

17-inch high resolution color TFT

2D graphic touch screen programming mode

3D visualization in simulation and production

Complete Windows application suite

Delem Modusys compatibility (module expandability and adaptability)

USB, peripheral interface

Profile-T2D offline software

Sensor bending and calibration interface

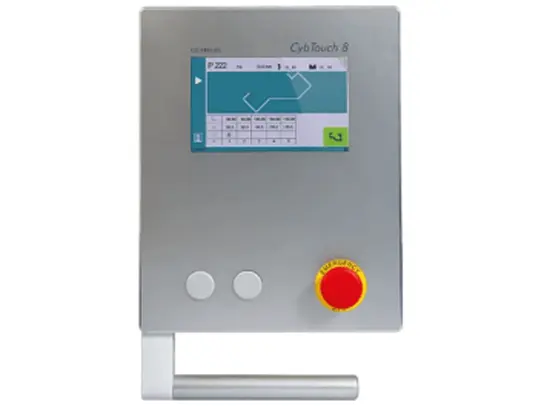

The CybTouch 8 PS is designed for synchronized press brakes and is part of the CybTouch family. It features an intuitive and vibrant color touch screen and a high level of functional integration.

7” color graphics CRT screen

Create 2D graphic profiles using manual sequencing

Up to 4 axes (Y1, Y2 + 2 axes)

Bending factor calculation.

Pressure - Capping calculation.

CNC camber control

Angle and backstop correction.

PC1200 offline software included.

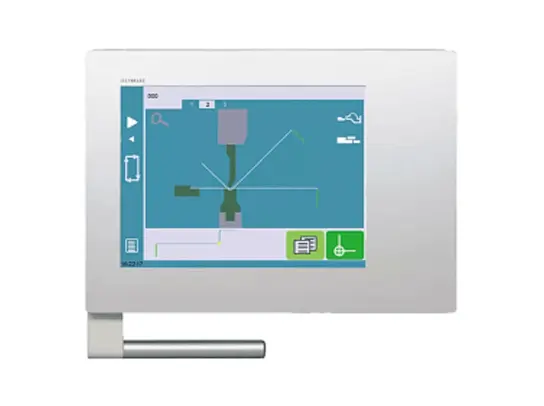

The CybTouch 15 PS is a 2D CNC control designed for entry-level to mid-range CNC bending machines. It is housed in a compact unit similar to the famous CybTouch series, with a larger touch screen and a new horizontal design.

15” color graphics with full touch screen

Touch 2D graphic profile drawing and accurate 2D program creation

Up to 6 axes (Y1, Y2, X, R, Z1, Z2 axes)

Automatic bending sequence calculation

Serialization management.

Modularizable tooling for each part or elbow.

Angle and backstop correction.

VisiTouch 2D or VisiTouch MX offline software.

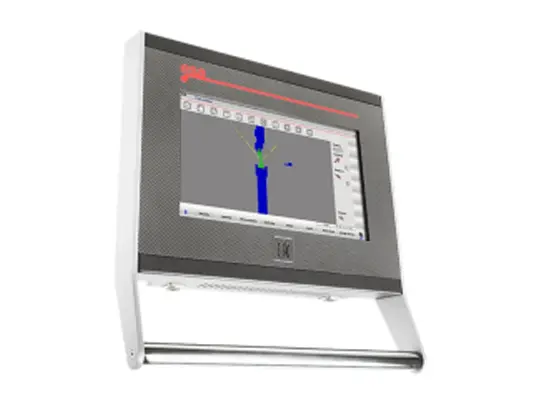

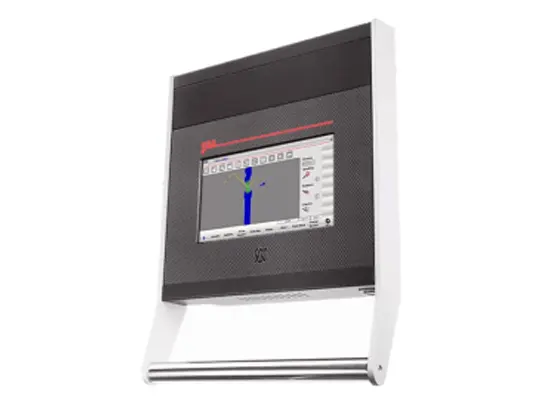

The controller's 10-foot-touch screen is the most powerful in its class and is equipped with high-performance graphics. This economical and user-friendly CNC controller offers all the features of a top-of-the-line machine tool.

10-inch LCD touch screen (resistive)

2D graphic part creation using manual sequential touch

Standard pairs of 4 axes (Y1Y2, X, R)

Automatic bending force and camber calculation.

Modularizable tooling for each part or elbow.

Direct angle correction, also for convexity.

Proprotional and Pressure Valve Amplify integration.

Free offline PC simulation software.

Tandem machine management (optional)

Modbus TCP interface for SCADA or MES (optional)

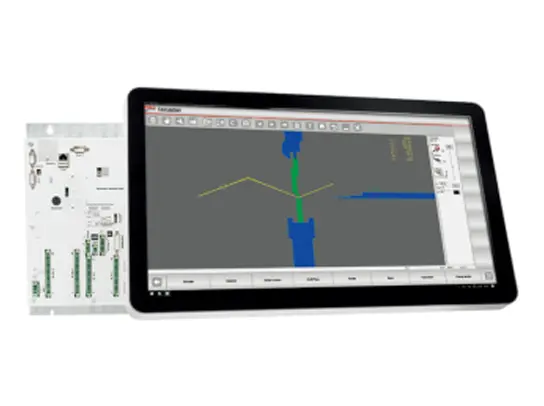

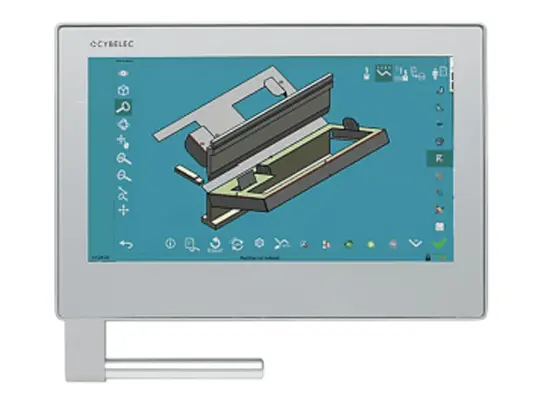

There are no limits to performance and flexibility.

Powerful built-in Pc allows to install real 3D cad cams (metallix, radan, esa) on the machine

Fingertip workpiece design.

Direct import of tool shapes (.dxf files) and management of tool libraries.

Tool and mold holder management.

Ability to use all existing equipment for angle measurement and calibration.

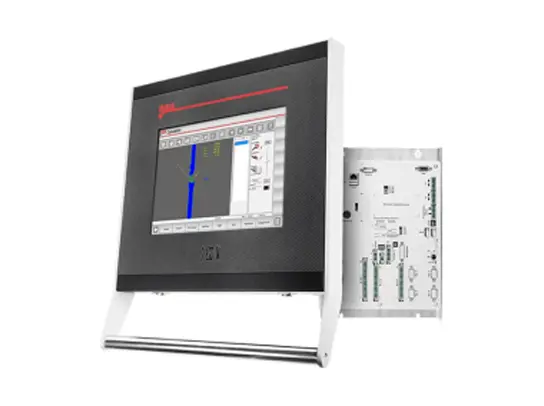

15-inch LCD touch screen (resistive)

DXF tool import (option)

2D graphic part creation using Auto Sequence Touch

Stand up to 4 axes, up to 32 axes.

Automatic bending force and convexity calculations.

Modularizable tooling per part or elbow.

Free offline PC simulation software.

Tandem machine management (optional, up to 4 machines)

Modbus TCP interface for SCADA or MES (optional).

DataM or Iris-Plus angular measurement management (option).

EsaBend-3D software (option)

Metalix, Radan, AutoPol 3d viewer (option)

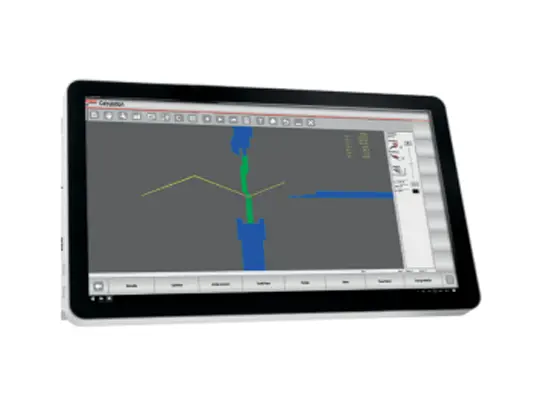

New Industrial PC VIS-S875

21.5 inches designed for multi-touch screens

Supports multi-touch applications

Frameless, simple and powerful

Supports fingertip artifact design

Supports import of tool shapes (.dxfifles)

Supports tool library management

Support for tool and mold holder management

Support for data angle measurement systems

Supports ESA 3D bending software

Equipped with standard Industry 4.0 Modbus TCP interface
